• Aloxtec ALOX 1.4
    Our expertise



    A unique and advanced technological solution dedicated to the oxidation phase involved in the manufacture of VCSELs



  • Vcsel in Aloxtec's ALOX 1.4

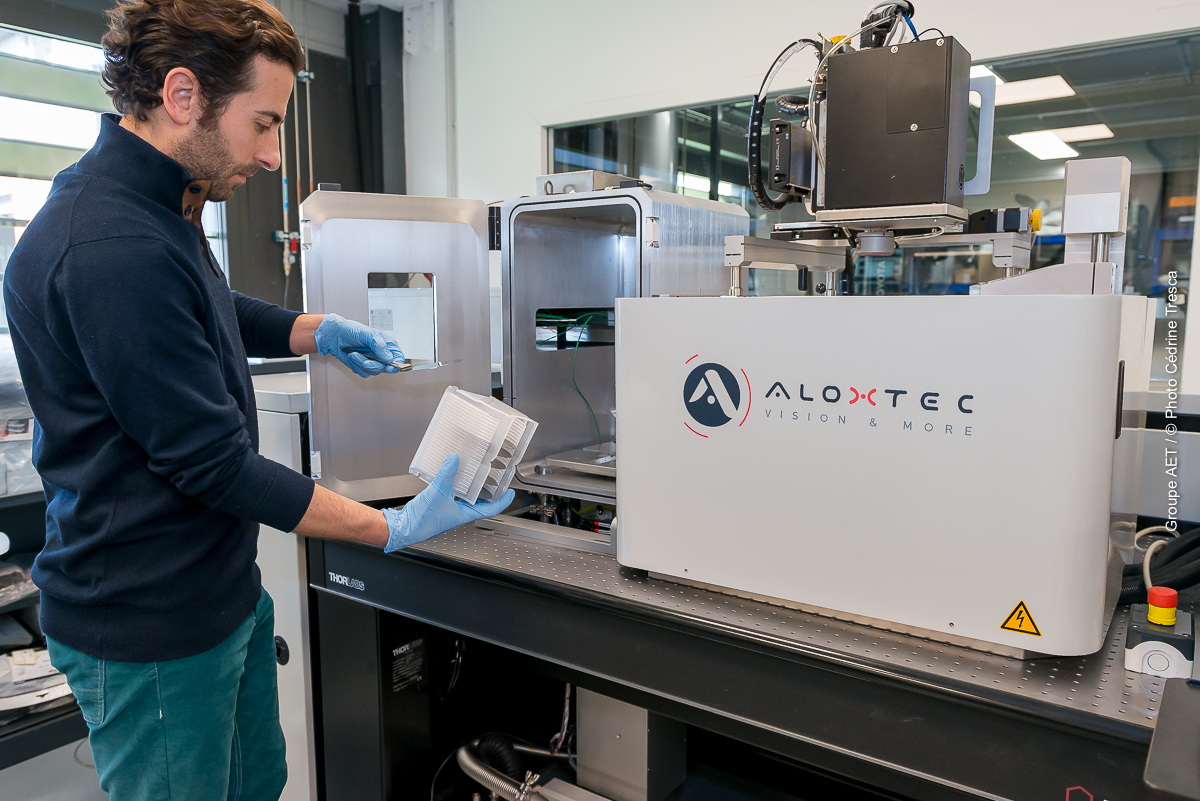

    Alox Furnace 1.4



    Designed for realizing the wet thermal oxidation of III-V compound semiconductors

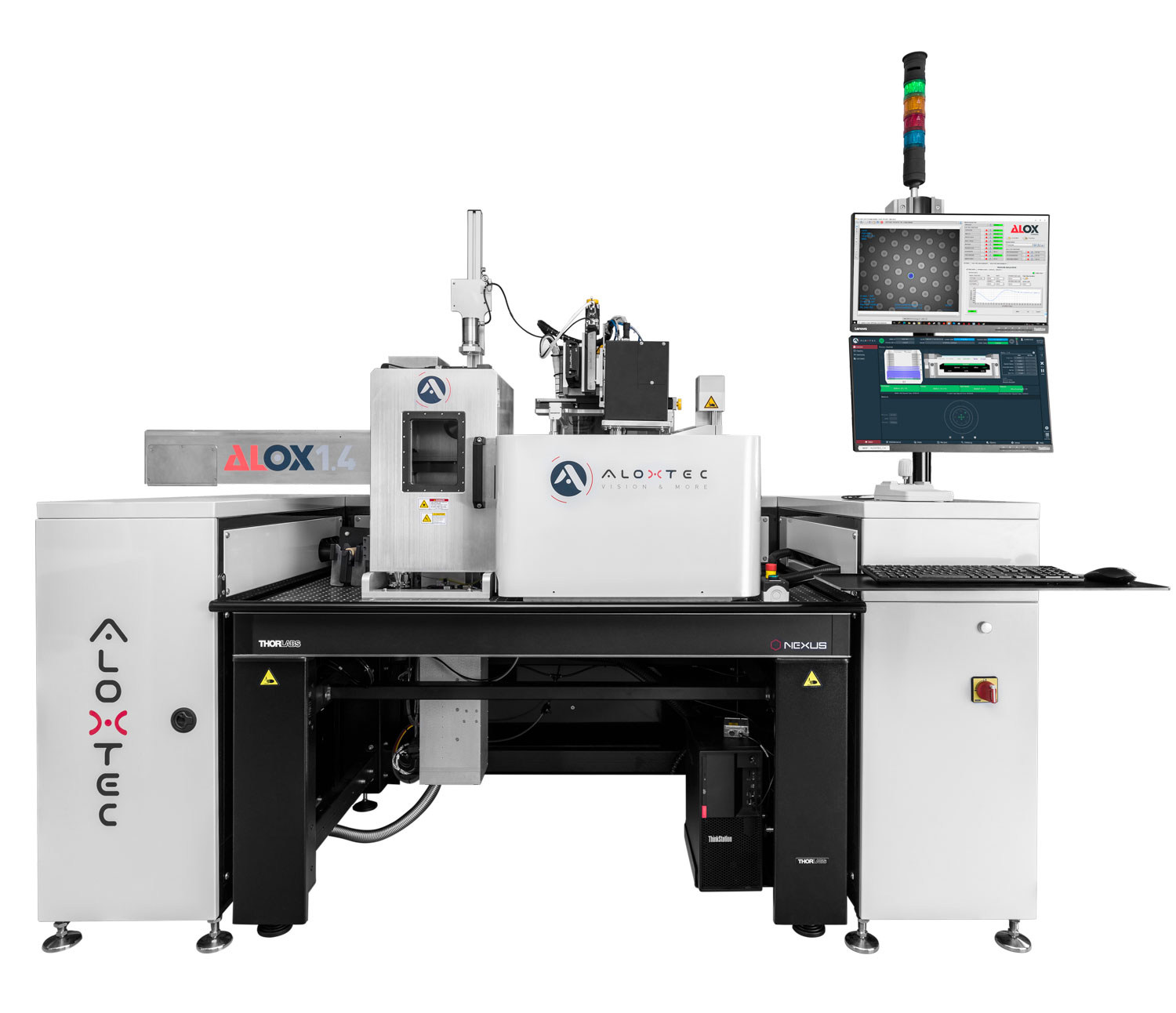

  • Aloxtec's automatic ALOX 1.4 with full cassette-to-cassette automation
    Who are we?



    Pioneers in materials processing today and tomorrow.



Photonic

Real time in-situ optical monitoring

Wafers

Automatic oxidation diameter control

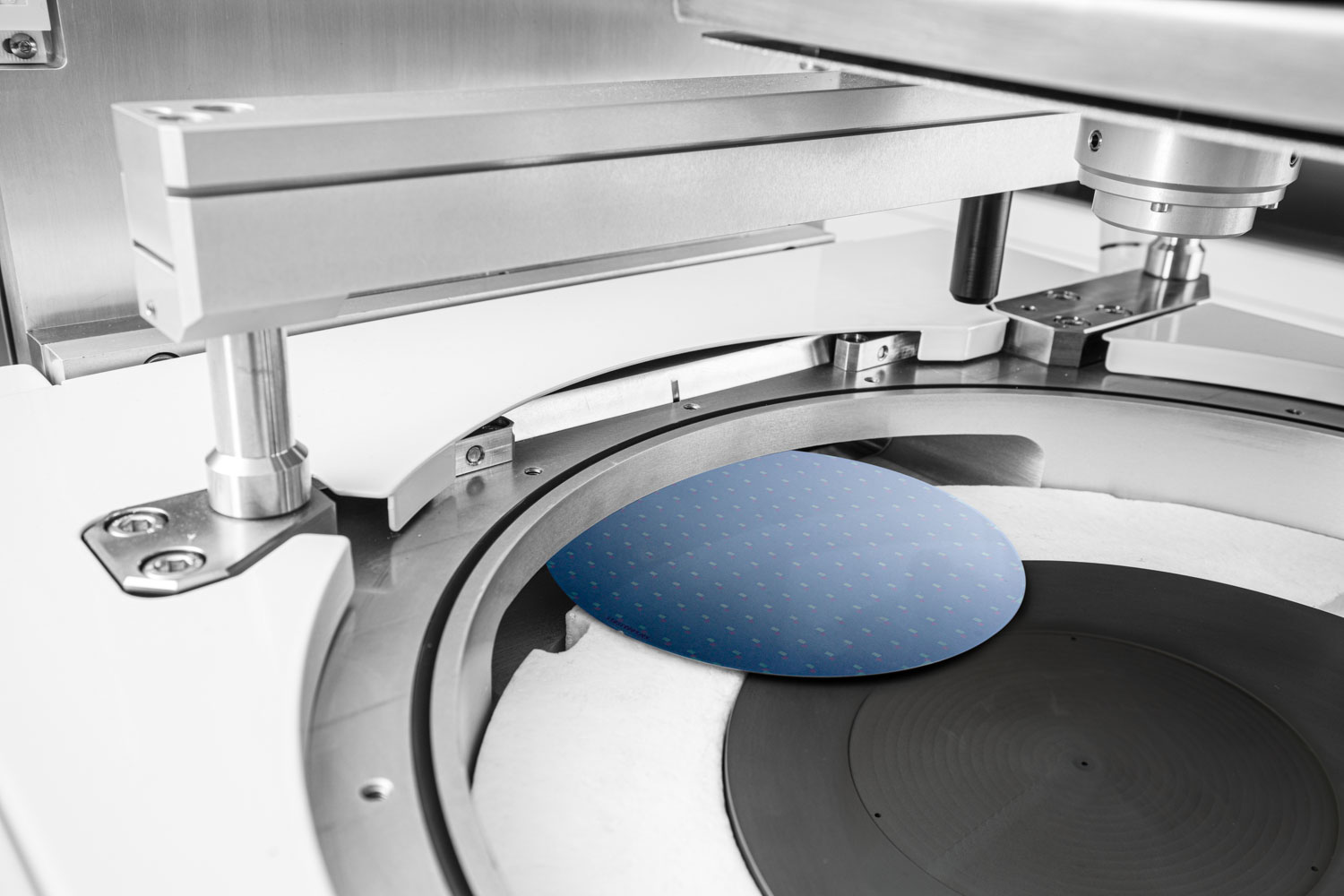

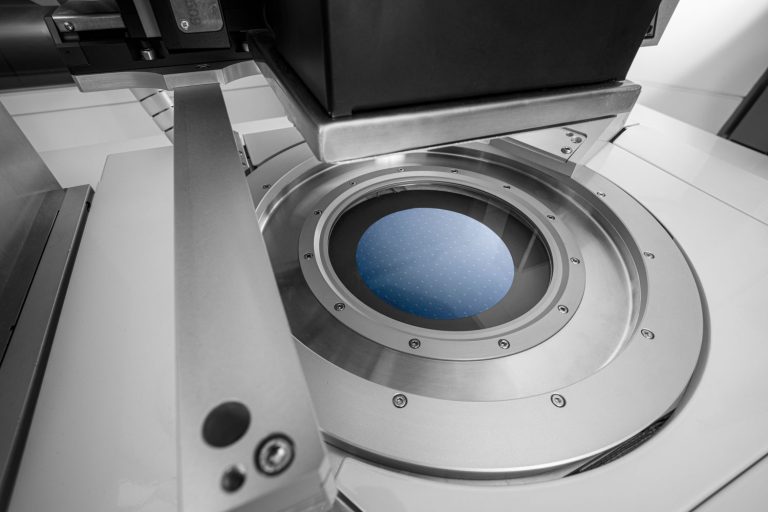

Wafer in Aloxtec's ALOX 1.4

Oxide aperture uniformity σ < 0.45 µm on 6” wafer *

Wafer

Run-to-run deviation σ < 0.05 μm *

Discover the new version of our Alox Machine :

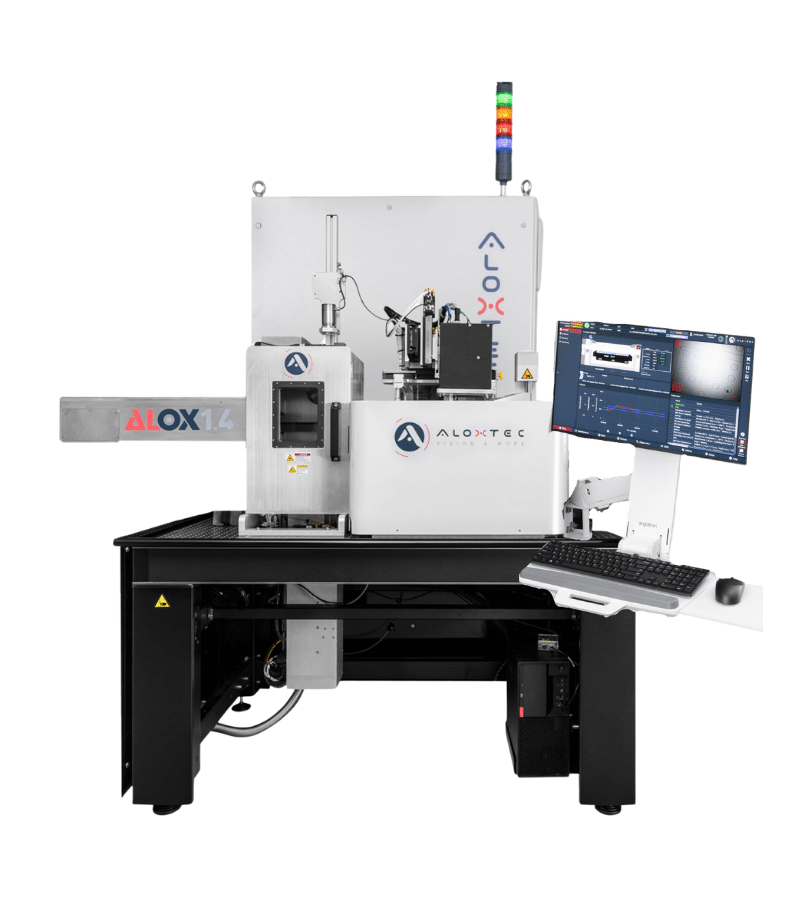

ALOX 1.4



Aloxtec ALOX 1.4

ALOX 1.4 Specifications



  • Up to 6” wafers : edge exclusion 5 mm
  • Selective oxidation process
  • Oxide aperture uniformity max – min < 0.8 µm*
  • Tight flow control of moisturized gas : 0,6 to 30 g/h
  • Vacuum atmosphere : <10 to 800 mbar absolute
  • Stabilized temperature 350°C to 600°C
  • Full control / supervision of machine
  • Programming of recipes
  • Automatic monitoring software to stop mesa oxidation attargeted aperture (optional)
  • Run-to-run deviation σ < 0.2 μm *

* For common results, depending on wafer

Our scientific partners



The universities of Berkeley in USA, and of Cardiff in Wales/UK agreed to let us use their ALOX system for demonstrations. On the process part, we benefit from the technological and scientific support granted by our CNRS/LAAS consultant.

The Laboratory of Analysis and Architecture of Systems (LAAS) is a CNRS research unit linked with the Institute for Engineering and Systems Sciences (INSIS) and the Institute of Information Sciences and their interactions (INS2I).

The Marvell NanoLab, located in the CITRIS headquarters building, Sutardja Dai Hall , includes more than 15,000 sq feet of Class100 and Class1000 cleanroom.

KTPs provide knowhow and funding that can help organisations break free from established ways of working to experience new ideas and processes that boost performance and cut costs.

Views of oxidation process over time

VCSEL Oxidation in a Aloxtec's ALOX 1.4 - step 1
VCSEL Oxidation in a Aloxtec's ALOX 1.4 - step 2
VCSEL Oxidation in a Aloxtec's ALOX 1.4 - step 3
VCSEL Oxidation in a Aloxtec's ALOX 1.4 - step 4

Applications

Alox furnace is destined to R&D and manufacturing of semiconductor devices in the fields of Photonics



VCSEL



The vertical-cavity surface-emitting laser, or VCSEL is a type of semiconductor laser diode. VCSEL applications include fiber optic communications, precision sensing, computer mice and laser printers.

Laser Diodes



A laser diode is a semiconductor device. Wide range of uses that include fiber optic communications, barcode readers, laser pointers, laser printing, laser scanning and light beam illumination.

Waveguides



A waveguide is an optical structure that directs the electromagnetic waves of an optical spectrum. Widely used in : optical fiber communication, photonic integrated circuits, and optical interferometers.



Exhibitions

Main tradeshows

Semicon Europa 2023

Nov 14–17, 2023
MESSE MÜNCHEN | Co-located with productronica

Semicon Taiwan 2022

14-16 September, 2022
TaiNEX 1, Taipei, Taïwan

CIOE 2022

7-9 September, 2022
SZCEC, Shenzhen, China
Gyeonggi-do, KOREA

Semicon China 2022

15-17 March, 2022
SNIEC, Shanghai, China

Photonics West 2022

21-27 February, 2022
San Francisco, California, USA

The group



We are able to offer our clients an end-to-end approach thanks to our technical skills and the experience of our teams.

A 360° value proposition in thermal equipment for research laboratories and industry



Tailor-made and standard technological solutions for a wide range of applications



Standard equipment solutions for laboratories and industry
